Veneer Joining Types

Customize your room look

It is only through the type of joining that the veneer unfolds its pattern and gives the panel its individual expression and the room its own look. Whether quiet or rustic – the editable types of joining show you the different possibilities.

Joining Type:

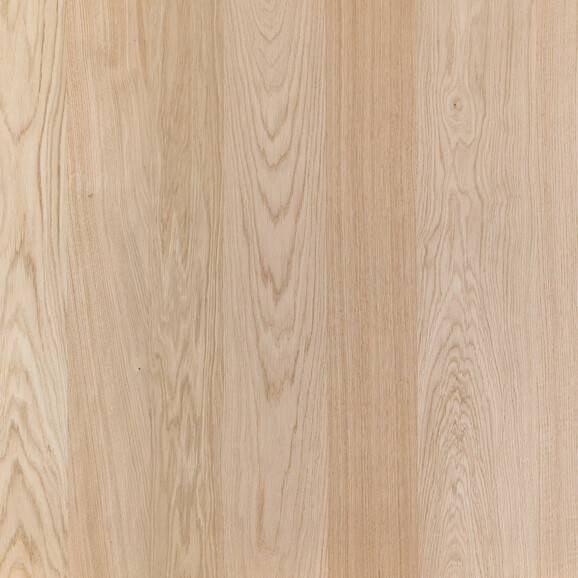

Rustic Panel 1

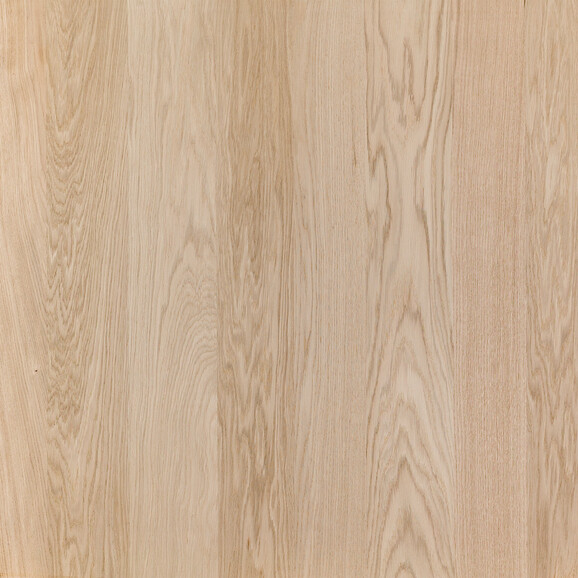

Rustic Panel 2

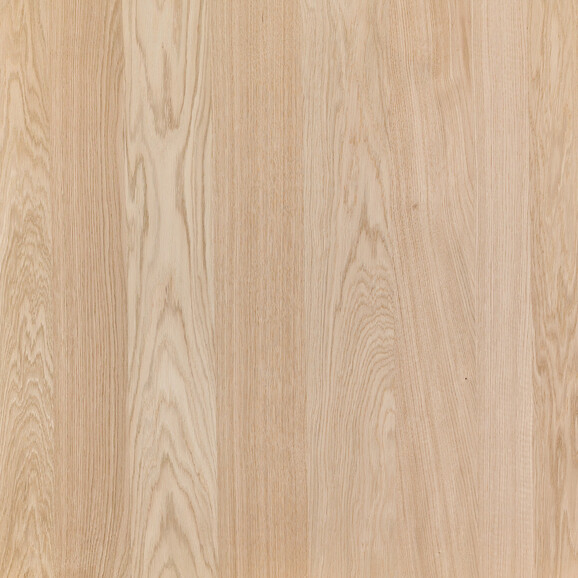

Rustic Panel 3

Characteristics

Veneers from different frets and trunks are combined, creating different colors, leaf widths and structures a vibrant, rustic appearance. The use of all veneer packages minimizes waste and ensures optimum material utilization. On large wall or ceiling surfaces, the striking appearance is particularly useful.

Attributes

Rustic Aesthetic

Eco-Friendly

Grain Alignment

sorting-oooo

Project Size

Cohesive surfaces up to 250m2 and beyond

Cut Method:

Light Quarter Cut Panel 1
Light Quarter Cut Panel 2
Light Quarter Cut Panel 3

Characteristics

Veneers from different frets are sorted in a mixed way. Harmonious colours and the fine, straight-line grain of the Rift veneers give a calm and elegant look. By sorting out extreme colors and structures, a homogeneous overall picture is created. Individual panels may have slight differences in color and structure. Particularly suitable for large wall or ceiling surfaces with higher optical requirements with low waste.

Attributes

Calm Aesthetic

Eco-Friendly

Grain Alignment

sorting-oooo

Project Size

Cohesive areas up to 250m2

Light Semi Quarter Cut Panel 1
Light Semi Quarter Cut Panel 2
Light Semi Quarter Cut Panel 3

Characteristics

Veneers from different frets are sorted in a mixed way. Harmonious colours and the fine, straight-line grain of the Rift veneers give a calm and elegant look. By sorting out extreme colors and structures, a homogeneous overall picture is created. Individual panels may have slight differences in color and structure. Particularly suitable for large wall or ceiling surfaces with higher optical requirements with low waste.

Attributes

Calm Aesthetic

Eco-Friendly

Grain Alignment

sorting-oooo

Project Size

Cohesive areas up to 250m2

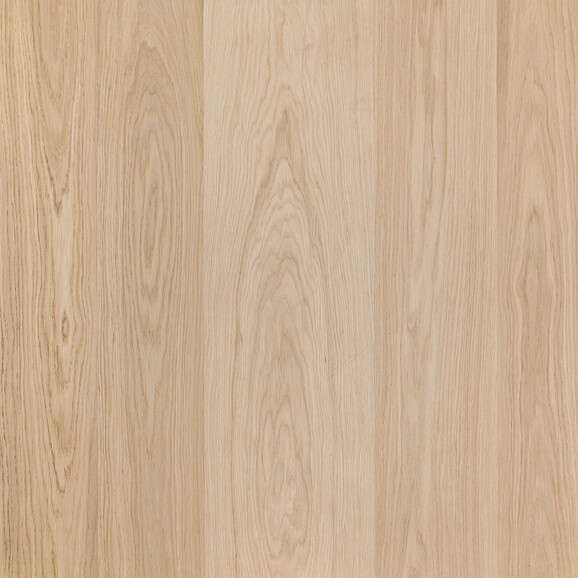

Light Composition Panel 1

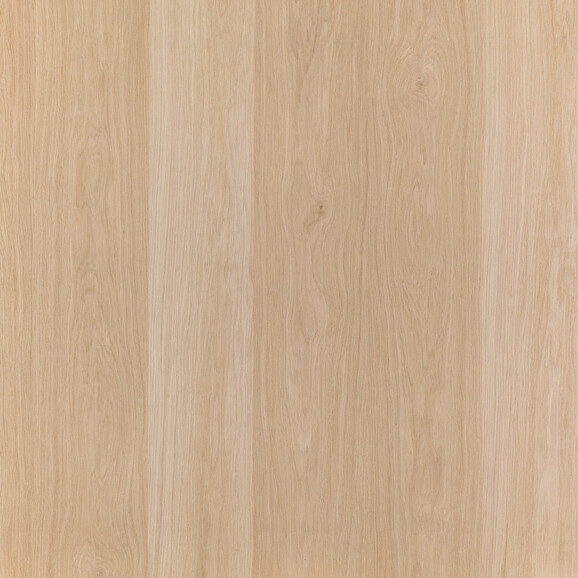

Light Composition Panel 2

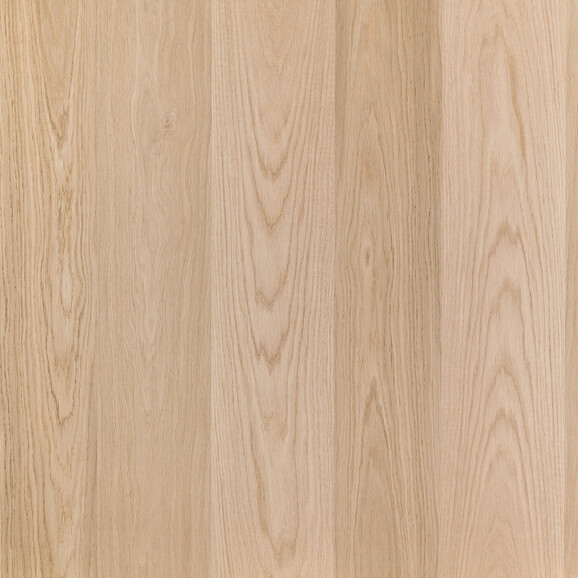

Light Composition Panel 3

Characteristics

Veneers from different frets are sorted in a mixed way. Harmonious colours and the fine, straight-line grain of the Rift veneers give a calm and elegant look. By sorting out extreme colors and structures, a homogeneous overall picture is created. Individual panels may have slight differences in color and structure. Particularly suitable for large wall or ceiling surfaces with higher optical requirements with low waste.

Attributes

Calm Aesthetic

Eco-Friendly

Grain Alignment

sorting-oooo

Project Size

Cohesive areas up to 250m2

Cut Method:

Slip-Matched Quarter Cut Panel 1
Slip-Matched Quarter Cut Panel 2

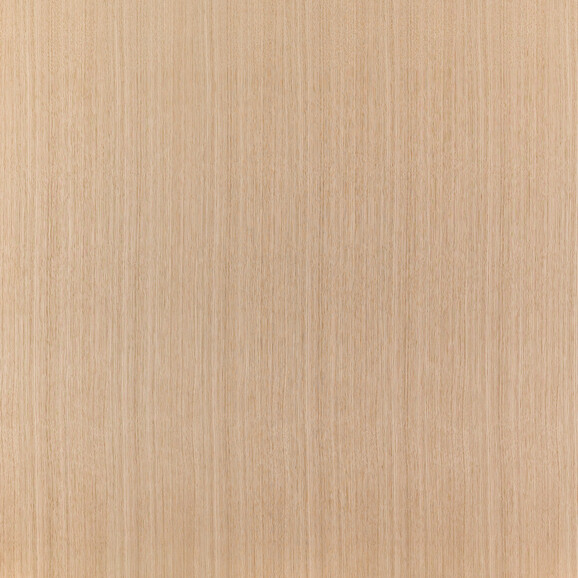

Slip-Matched Quarter Cut Panel 3

Characteristics

Rift veneers from the same waistband are sold. Calm, homogeneous veneers produce balanced surfaces, whereby the same veneer leaf at the top prevents the panels from squinting. Striking veneer spots repeat themselves in the rapport. Color differences are emphasized, as the heart and sap side are glued. The veneer structure often runs slightly obliquely. Suitable for small wall and ceiling surfaces with a quiet look, less for large areas.

Attributes

Balanced Aesthetic

Visible Repeat

Grain Alignment

sorting-rrrr

Project Size

Cohesive surfaces up to 250m2 and beyond

Slip-Matched Semi Quarter Cut Panel 1
Slip-Matched Semi Quarter Cut Panel 2
Slip-Matched Semi Quarter Cut Panel 3

Characteristics

Rift veneers with cut heart (easy transition to «construction») from the same waistband are sold. Calm, homogeneous veneers produce balanced surfaces, whereby the same veneer leaf at the top prevents the panels from squinting. Striking veneer spots repeat in the rapport. Color differences are emphasized, as the heart and sap side are glued. By more or less a proportion of heart/flower, the image can easily look asymmetrical. Suitable for small wall and ceiling surfaces with a quiet look, less for large areas.

Attributes

Balanced Aesthetic

Visible Repeat

Grain Alignment

sorting-rrrr

Project Size

Cohesive surfaces up to 30m2

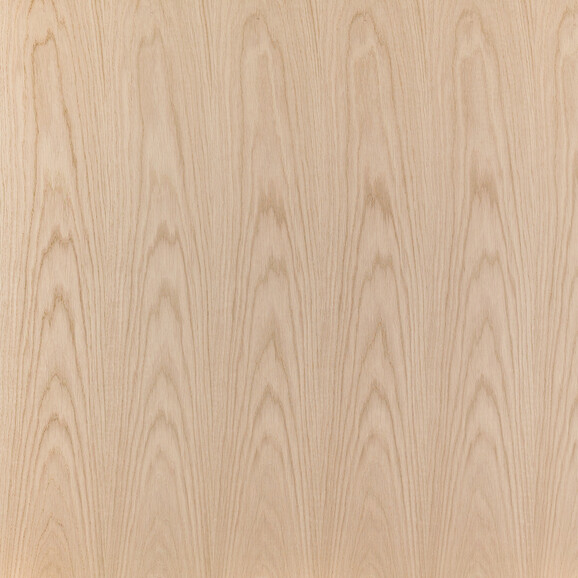

Slip-Matched Composition Panel 1

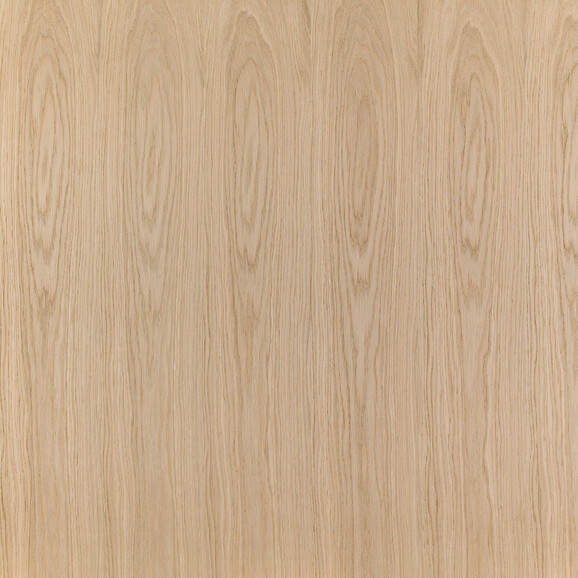

Slip-Matched Composition Panel 2

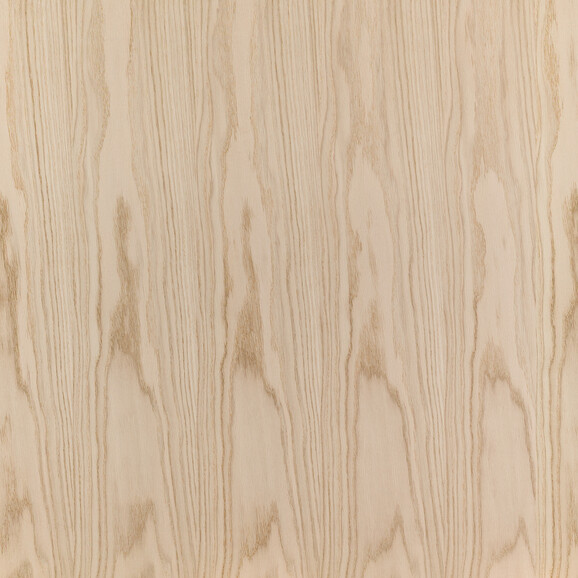

Slip-Matched Composition Panel 3

Characteristics

Veneers from the same waistband are sorted. Even blade widths ensure a harmonious look with minimal blending. Slight differences in structure, color or leaf width are retained. Cut construction (flower) on the sides is possible. Ideal for small wall or ceiling surfaces, e.g. Cabinet fronts, less for large areas.

Attributes

Balanced Aesthetic

Visible Repeat

Grain Alignment

sorting-rrrr

Project Size

Cohesive surfaces up to 30m2

Cut Method:

Slip-Matched Partially Rotated Quarter Cut Panel 1

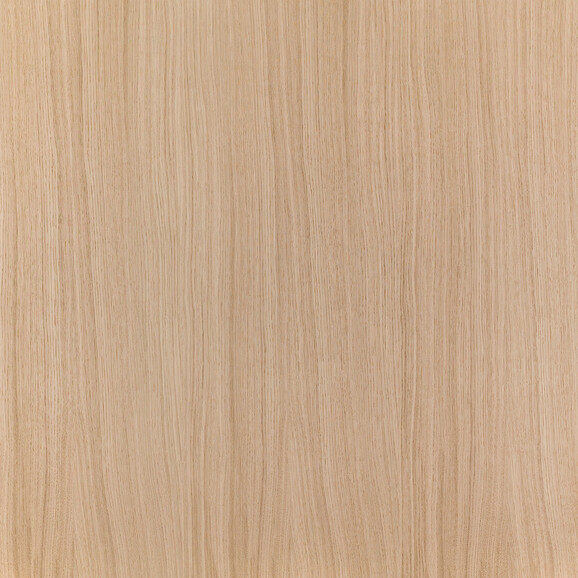

Slip-Matched Partially Rotated Quarter Cut Panel 2
Slip-Matched Partially Rotated Quarter Cut Panel 3

Characteristics

Veneers from the same waistband are sorted, every second sheet is rotated by 180°. Depending on the width of the leaf, panels with uniform color and structure are created, while turning prevents a strong emphasis on the panel foot. Each waistband develops its own characteristic, differences in structure, leaf width or color can occur. When light falls sideways and flat on a surface, strip formation is visible. Suitable for small ceiling and wall coverings with horizontal veneer.

Attributes

Balanced Aesthetic

Calm Aesthetic

Grain Alignment

sorting-roro

Project Size

Cohesive surfaces up to 30m2

Slip-Matched Partially Rotated Semi Quarter Cut Panel 1
Slip-Matched Partially Rotated Semi Quarter Cut Panel 2
Slip-Matched Partially Rotated Semi Quarter Cut Panel 3

Characteristics

Veneers from the same collar are sorted, every second sheet is rotated about the longitudinal axis by 180°. In the case of calm, color-homogeneous veneers, balanced surfaces are created, whereby the same veneer leaf side at the top prevents the panels from squinting. Color differences in the sheet are compensated for by the gluing of core-core and splint-splint sides, but can be emphasized during painting. Stripe formation can occur in the grazing light. Suitable for small wall and ceiling surfaces with a quiet look and a slight emphasis on the wood structure.

Attributes

Balanced Aesthetic

Accented Grain Texture

Grain Alignment

sorting-roro

Project Size

Cohesive surfaces up to 30m2

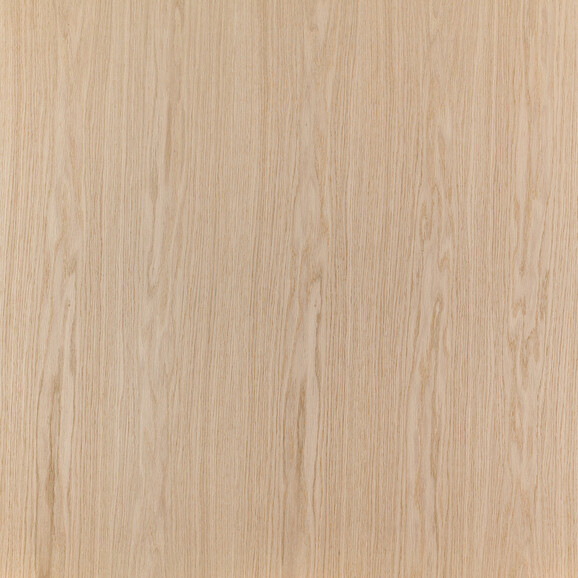

Slip-Matched Partially Rotated Composition Panel 1

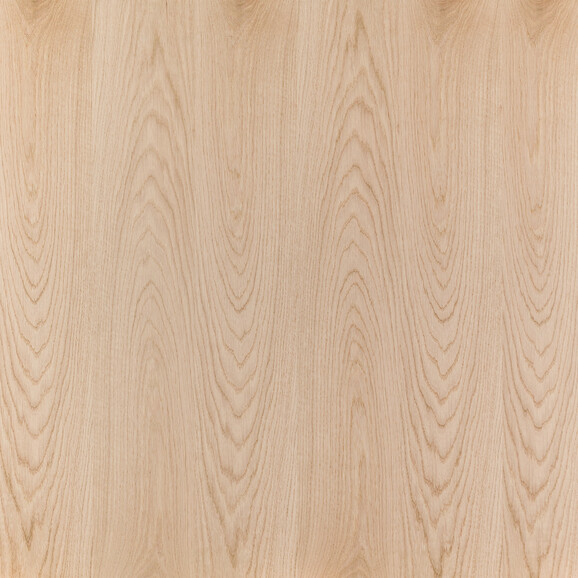

Slip-Matched Partially Rotated Composition Panel 2

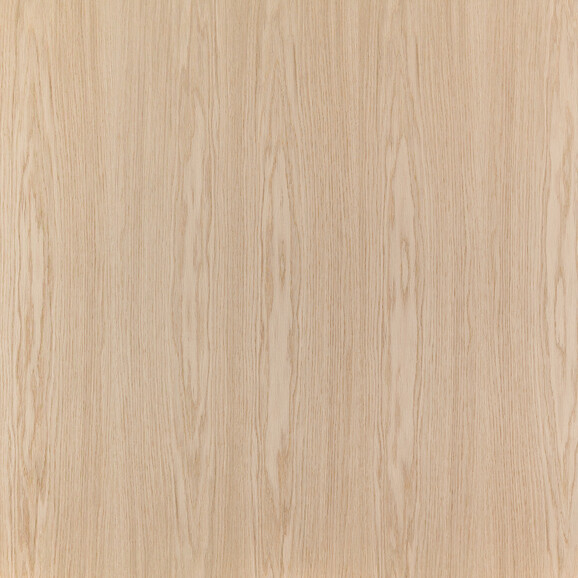

Slip-Matched Partially Rotated Composition Panel 3

Characteristics

Veneers from the same collar are sorted, every second sheet is rotated about the longitudinal axis by 180°. Depending on the width of the leaf, panels with uniform color and structure are created, while turning prevents a strong emphasis on the panel foot. Each covenant develops its own characteristic. Differences in structure, leaf width or color may occur. Strip formations are visible for small surfaces. Suitable for small ceiling and wall coverings with horizontal veneer.

Attributes

Smooth Grain Progression

Decorative, Prominent Grain

Grain Alignment

sorting-roro

Project Size

Cohesive surfaces up to 30m2

Cut Method:

Book-Matched Quarter Cut Panel 1
Book-Matched Quarter Cut Panel 2
Book-Matched Quarter Cut Panel 3

Characteristics

Veneers from the same waistband are sorted to fall. Each pair of veneers is arranged like an open book page. Symmetrical image is only created with a straight number of sheets. Cut on the sides is possible. Color differences can be emphasized during painting. Suitable for small wall and ceiling panels with even panel width. For customers who value a balanced, natural veneer.

Attributes

Symmetrical Appearance

Balanced Veneer Pattern

Grain Alignment

Project Size

Cohesive surfaces up to 30m2

Book-Matched Semi Quarter Cut Panel 1
Book-Matched Semi Quarter Cut Panel 2
Book-Matched Semi Quarter Cut Panel 3

Characteristics

Veneers with a cut heart (easy transition to the «assembly») from the same waistband are sorted. Each pair of veneers is arranged like an open book page. A symmetrical image is only created with a straight number of sheets. A cut on the sides is possible. Color differences can be emphasized during painting. Suitable for small wall and ceiling panels with even panel width.

Attributes

Symmetrical Appearance

Decorative, Prominent Grain

Grain Alignment

Project Size

Cohesive surfaces up to 30m2

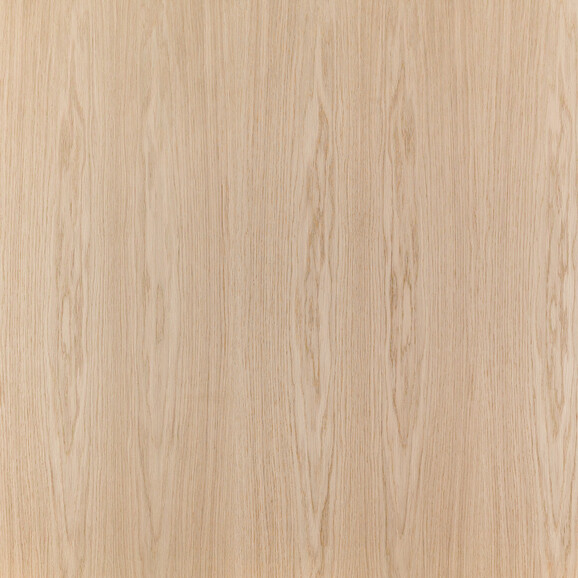

Book-Matched Composition Panel 1

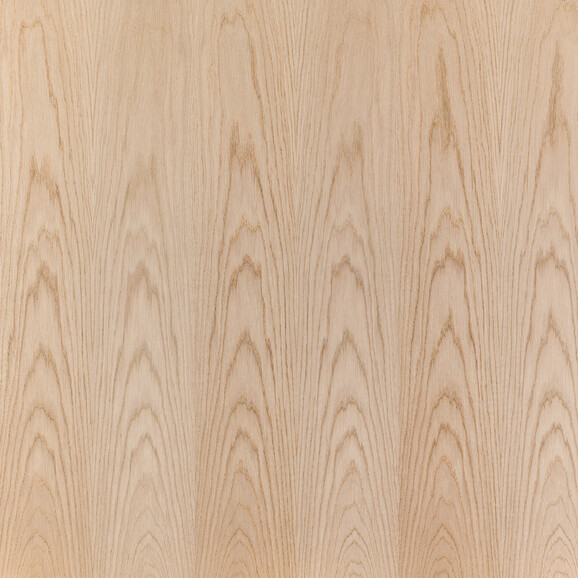

Book-Matched Composition Panel 2

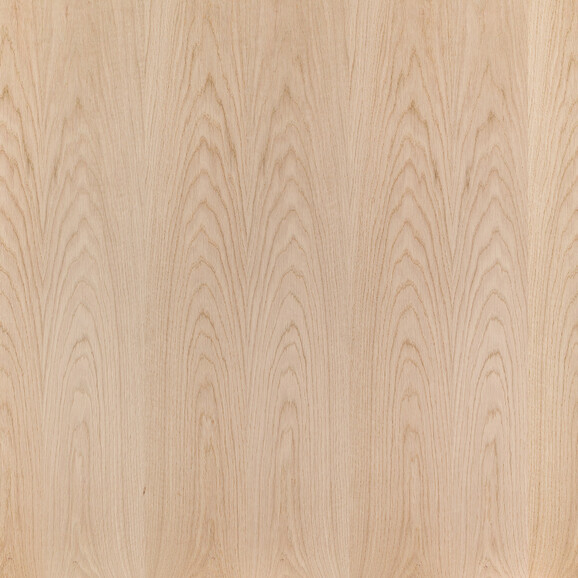

Book-Matched Composition Panel 3

Characteristics

Veneers from the same waistband are sorted to fall. Each pair of veneers is arranged like an open book page. With a straight number of sheets, a symmetrical overall picture is created. Slight slants of the grain are compensated. The underside of the veneer has different technical characteristics than the top side. In the case of stained or painted surfaces, stripe formation or slight color differences may occur. Suitable for small wall surfaces with vertical veneer.

Attributes

Symmetrical Appearance

Decorative, Prominent Grain

Grain Alignment

Project Size

Cohesive surfaces up to 30m2

Veneer Joining

Wood is a natural product – each piece is unique in color, structure and growth. The illustrations shown serve as a system representation and provide an overall optical impression. Natural differences can occur within the same veneer strain. For particularly high standards, we recommend a personal conversation and a joint veneer selection in the company’s own veneer factory.

Veneer Joining Note

The road to the veneer

From the individual tree to the individual panel: Carefully processed and refined, every top acoustic product preserves the uniqueness and natural beauty of the wood.
